Builder's On-Screen Take-Off

Take-off linked measurements from PDFs

  • Builder’s On-Screen Take-Off allows you to take off linked measurements from PDF drawings (on screen) directly into the standard Dimensions system – and you don’t need anything other than your mouse!

    • The Take-Off module is accessed directly from the Item on your bill page

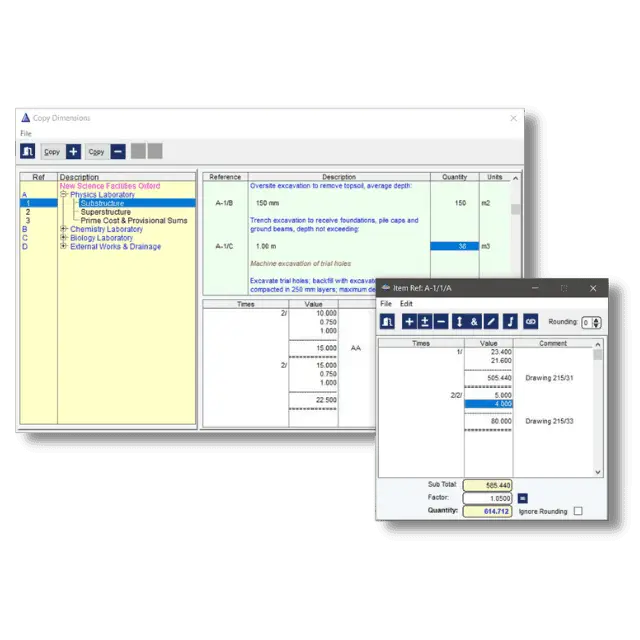

    • Take-off measurement directly into the Dim sheet within Estimating Module

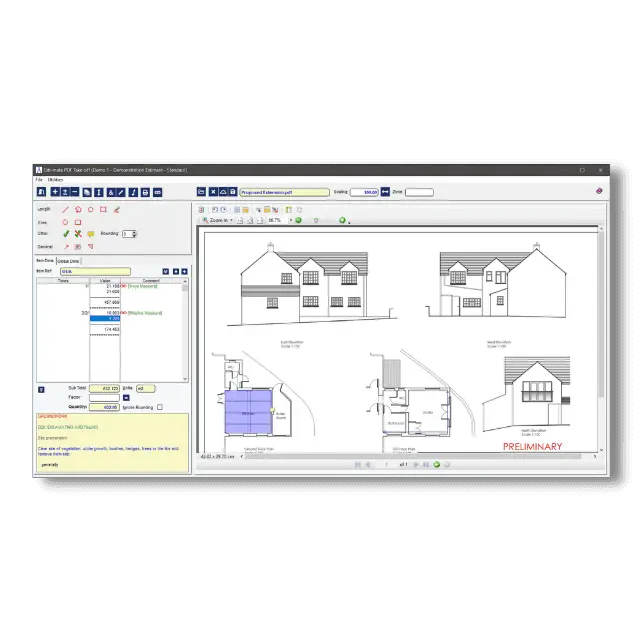

    • On-screen measurement from PDF drawings
    • Dimensions linked directly to bill Items
    • Measures length, perimeter, area and counts Items
    • Accurate scaling and re-scaling of measurements
    • Two zone scales available for each PDF drawing
    • The drawing is marked up with the measurements for each Item you measure including deductions for openings
    • Captures and saves all measures on drawings for future use
    • Measurements used to mark-up drawings in colour
    • Link measurements to B of Q Dims or to Global Dims
    • Changes to the take-off measurements automatically update linked Dims
    • Records drawings used with B of Q items
    • Live audit trail from Estimate Dims to take-off drawings
